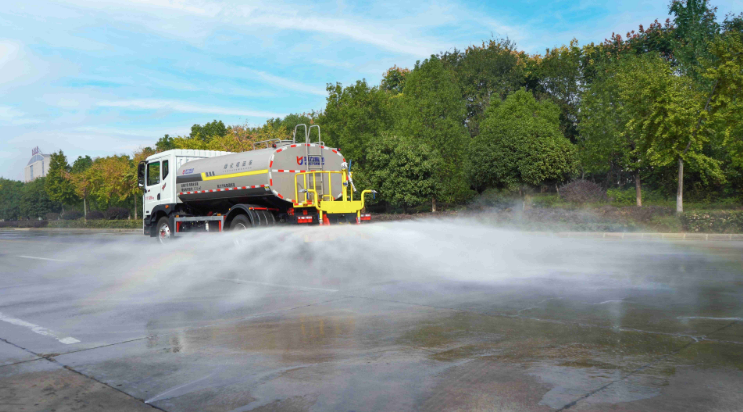

Water truck Introduction
The Sinotruck HOWO is a heavy-duty Sinotruck water truck delivery platform designed for large-scale road maintenance, dust suppression, and firefighting operations. Engineered to meet Euro III emission standards, the 21m³ water truck combines rugged durability with intelligent control systems, making the water truck ideal for construction sites, mining zones, and municipal services.
Key Technical Specifications
Vehicle Model: KLF5250GPSZ6 (Euro III Certified)
Chassis Configuration: 6x4 drive, optimized for off-road stability
Wheelbase: 4300+1350 mm (enhanced load distribution and turning flexibility)
Frame: Double-layer reinforced steel (8+5 mm thickness/280 mm height)
Sinotruck water truck delivery chassis components include:
Engine: MAN MC07.31-60
Power: 310 HP (228 kW) @ 1900–2300 RPM
Torque: 1230 Nm @ 1000–1400 RPM
Fuel Type: Diesel (Euro III compliant)
Transmission: HW13709XSTC2 (9-speed manual) + HW70 flange-mounted PTO
Gear Ratios: 11.02–0.73 (adaptive to steep gradients)
PTO Control: Rotary knob activatio
The Sinotruck water truck delivery prioritizes operator comfort:
Cabin Type: HOWO TX5 high-roof sleeper cab
Seating:
Driver’s seat: Air-suspension with lumbar support
Co-driver seat: Simplified mechanical suspension
Controls:
8198 hydraulic steering gear
Centralized dashboard with LCD diagnostics
Electric-hydraulic tipper lifting system (manual/auto switchable)
Safety:
Non-metallic mid-position bumper
Reinforced rollover protection structure (ROPS)
Water Delivery System Configuration
As a dedicated Sinotruck water truck delivery unit, the water truck features:
Tank Capacity: 21 m³ (21,000 liters)
Material: 4 mm carbon steel + 2 mm anti-corrosion epoxy coating
Design:
U-shaped cross-section for enhanced structural integrity
Internal anti-slosh baffles (6 compartments)
Dual manholes (Φ500 mm) for easy cleaning
Water Pump: Centrifugal pump (80–100 m³/h flow rate)
Pressure: 0.3–0.6 MPa (adjustable via in-cab control panel)
Sprinkler Configuration:
Front high-pressure nozzle (15 m range)
Rear spray bar (6 m coverage width)
Side misting nozzles (optional dust suppression)
Valves: Pneumatic ball valves with anti-clogging filters
To maximize Sinotruck water truck delivery efficiency:
Hydraulic System:
Gear pump (40 L/min flow)
Independent oil cooler
Electrical System:
24V dual-battery setup
Sinotruck SmartTonic D telematics (GPS tracking, fuel monitoring)
Fuel Tank: 300 L aluminum alloy (anti-theft design)
Operational Parameters
Certifications & Warranty
Compliance: Euro III, ISO 9001, GCC standards
Warranty:
12-month bumper-to-bumper warranty
Lifetime technical support for Sinotruck water truck delivery systems
